Scanning Tunneling Microscope In Surface Physics

What Is Scanning tunneling microscope?

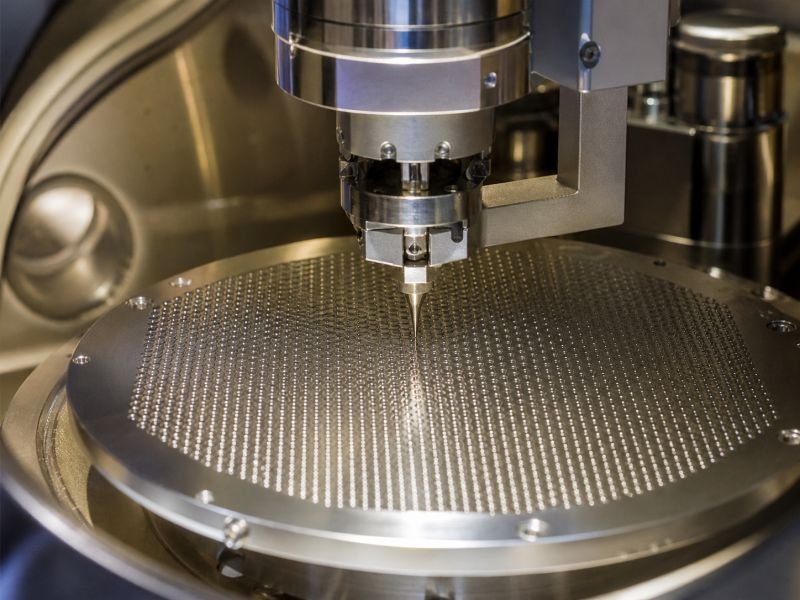

A scanning tunneling microscope is an instrument that images conductive surfaces by measuring quantum tunneling current between an atomically sharp tip and a nearby sample. When the tip approaches within about a nanometer, electrons tunnel across the gap even though no classical contact exists. The current follows an exponential relation, often written I ~ exp(-2kd), so tiny changes in tip distance produce large signal changes.

In operation, the tip rasters across the surface while feedback electronics adjust height or current to maintain a controlled tunneling condition. That lets the instrument resolve steps, defects, adsorbed atoms, and local electronic structure with atomic-scale sensitivity. In atomic-resolution materials analysis, the microscope turns quantum behavior into a practical map of where surface atoms sit and how electronic states vary from point to point.

The method matters because surfaces often determine catalysis, corrosion, semiconductor performance, and nanoscale fabrication outcomes. Used in devices include scanning probe systems for chip inspection, molecular electronics research platforms, catalytic surface studies, and atom-manipulation tools. Researchers choose STM when they need both topographic detail and access to local electronic behavior, while accepting requirements for conductive samples, vibration control, and extremely stable tip positioning.

Example:
A researcher can image individual adatoms on a metal surface by holding the tip current nearly constant during a raster scan.

Related Terms:

• Quantum Tunneling
• Atomic Force Microscope
• Surface Topography
