Ultra-Supercritical Steam Cycle In Power Thermodynamics

What Is Ultra-Supercritical Steam Cycle?

An ultra-supercritical steam cycle is a high-efficiency power cycle that operates water and steam above the critical pressure of water while also using very high steam temperatures. Above the critical point, the fluid does not pass through a distinct boiling transition inside the boiler. A key threshold is p > p_c, where p_c for water is about 22.1 MPa.

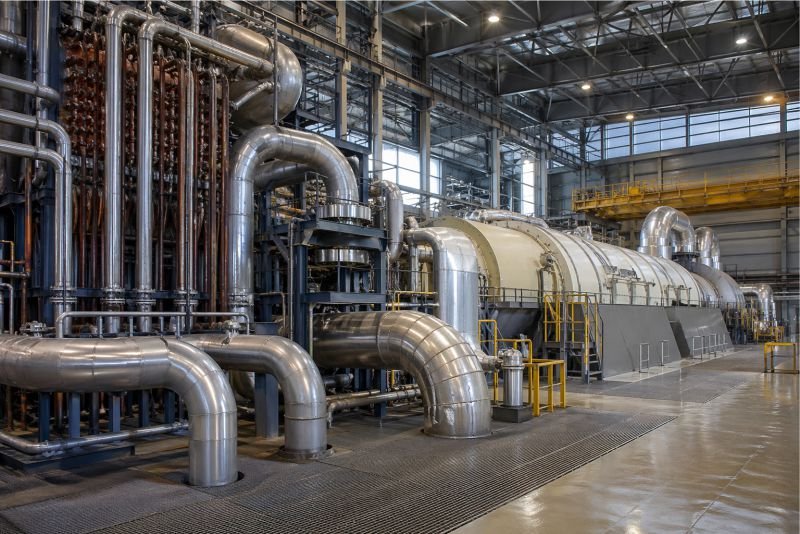

In real plants, this cycle uses once-through boilers, high-temperature turbines, reheaters, and advanced alloys that can tolerate demanding thermal and mechanical stress. The goal is to raise the average temperature at which heat is added, which improves the thermodynamic performance of the overall Rankine process. In thermal power generation, ultra-supercritical operation is one route to extracting more electricity from the same fuel input.

This cycle matters because even modest efficiency gains at utility scale reduce fuel consumption, cooling demand, and emissions per unit of electricity delivered. The tradeoff is a sharper requirement for corrosion control, creep-resistant materials, and tight operating margins. Used in devices include utility boilers, steam turbines, reheaters, and condenser systems. Engineers adopt the approach when plant scale and fuel savings justify the higher materials and maintenance burden.

Example:
A modern coal-fired generating unit can use an ultra-supercritical steam cycle to raise output efficiency by running hotter and at higher pressure than older subcritical units.

Related Terms:

• Entropy
• Kelvin Scale
• Rankine Cycle
