Exergy In Thermodynamics

What Is Exergy?

Exergy is the maximum useful work that can be obtained from an energy flow as it comes into equilibrium with its surroundings. It measures energy quality rather than energy quantity. A compact relation is Ex = E – T0 S for an idealized closed system, where environmental temperature T0 sets the reference state.

In real systems, exergy decreases whenever heat flows across a finite temperature difference, fluids mix, friction dissipates motion, or combustion produces entropy. The lost exergy is not missing energy; it is energy that remains conserved but becomes less able to perform work. energy conversion thermodynamics uses exergy to identify where design changes can recover useful performance and where physical limits dominate.

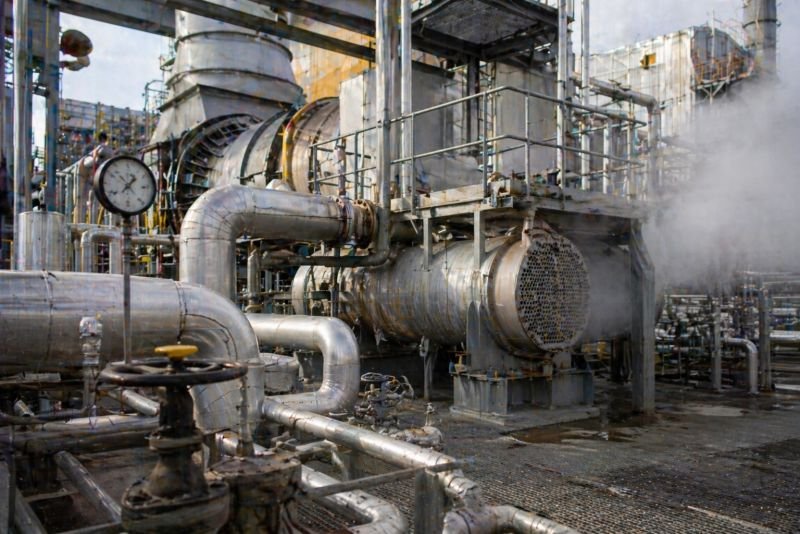

The concept matters because two energy streams with equal joules can have very different usefulness. High-temperature steam can drive a turbine, while the same amount of low-temperature heat may only warm buildings or water. Used in devices include gas turbines, heat pumps, fuel cells, steam cycles, district heating networks, and industrial heat recovery systems.

Engineers estimate exergy by comparing actual states with a defined environment, often using temperature, pressure, composition, enthalpy, and entropy. Exergy analysis helps rank losses so attention goes to components that destroy the most potential work.

Example:
A combined heat and power plant may have moderate electrical efficiency but high exergy use when it supplies both turbine work and useful process heat.

Related Terms:

• Rankine Cycle
• Entropy
• Thermal Efficiency
